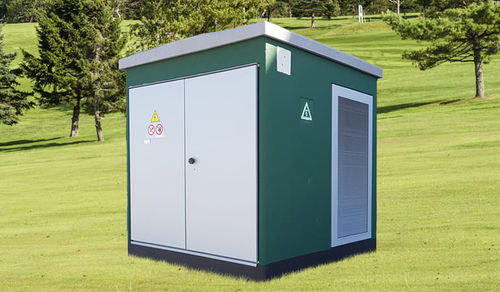

Medium-voltage transformer distribution substation DG 10200 Ed.1

E-Distribution approved electrical substation, used as a MV / LV transformer substation that can be operated from the outside equipped with internal arc-proof fixtures. It is built according to the requirements of the ENEL DG 10200 standardization technical specifications, it is built in vibrated reinforced concrete with a monobloc structure that incorporates the foundation base and the tank and is equipped with a removable roof. It is supplied complete with all its parts except for the main equipment (MV panel, Transformer, LV panel and cables). The external walls, excluding the part of the bottom that will be buried in place, where a suitable waterproofing covering is provided, are treated with a water-repellent plastic wall covering consisting of high-quality synthetic resins, quartz powder, coloring oxides and additives that guarantee perfect anchoring on the product, resistance to atmospheric agents even in industrial and marine environments, color unalterability in sunlight and stability to temperature changes.
