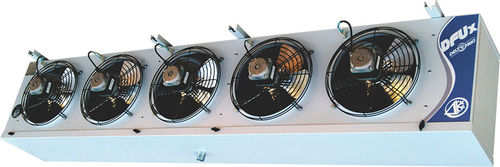

Thermal evaporator DFUx series

laboratoryelectriclow temperature

Commercial Evaporators with Higher Power Specifically for Low Temperatures 68% more flow in comparison with the DFU line. The DFUX models feature fans with higher power and greater diameter, providing greater flow, increased air sweep and higher capacity. Far less blockage in the fin assembly, due to spacing of 8 mm, permitting application at lower temperatures and with high air humidity. Finish in white electrostatic coating, which provides both an exceptional aesthetic aspect and increases protection against corrosion. Fixed swinging lateral covers with handles, which means it can be opened by hand, without the need for tools, increasing the speed of maintenance. The ice from the valve drips inside the tray due to the internal space for the valve, preventing dripping on the ground. Highly efficient electric defrost due to direct contact between the resistor and the copper tubes, which quickly dissipates all the heat inside the coiled tube, ensuring the ice melts more rapidly. High mechanical strength of equipment due to the manufacturing material used. For the size of the packaging, add the following measurements to the equipment dimensions: X + 20 mm, Y + 90 mm and Z + 20 mm DFUX = without electric defrost DFUXI = with electric installation for electric defrost DFUXD = with electric defrost The above flows are stated for 60Hz, however the motorized fans also operate at 50 Hz, while in this case the flow drops by approximately 13% and the capacity by approximately 7%.
