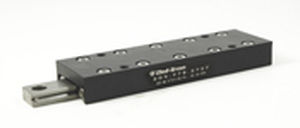

Crossed roller linear slide LPT-3080low-profilealuminum
Add to favorites
Compare this product
Characteristics
- Type
- crossed roller
- Other characteristics
- low-profile, aluminum
- Load
404 lb
(183.3 kg)- Stroke
1.8 in
Description
Low Profile Crossed Roller Slide Tables
Family: LPT-3000
Model: LPT-3080
Price: $ 275.00
All dimensions in inches unless otherwise specified
Mounting Dimensions Carriage
Spacing P : 1.181
Thread J : 10-32
Depth K : 0.295
Mounting Dimensions Base
C-Bore D : 0.327
C-Bore d : 0.204
Depth h : .205
Height A +/- 0.004 (0.1) : 0.630
Width B +/- 0.004 (0.1) : 1.575
Base Thickness C : 0.315
Base Width X : .629
