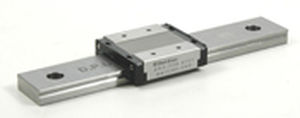

Linear guide with recirculating ball carriage BSG10-1-55

steelprecisioncompact

Recirculating Ball Slide Guides (BSG) Family: BSGS10 Model: BSGS10-1-55 Price: $ 107.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 10 (0.394) B : 20 (0.788) L2 : 30.5 (1.2) L1 : 28.1 (1.106) W : 2.5 (0.098) P1 : 15 (0.591) P2 : 10 (0.394) S1 : M3 e1 : 3 (0.118) L3 : 20.4 (0.803) W2 : — S2 : — e2 : — b : 7.8 (0.307) Basic Load Ratings : kgf (lbf) Dynamic C : 170 (375) Static Co : 250 (551) Dimensions of Guide Rail : mm (in) P : 20 (0.788) H1 : 5.5 (0.217) C : 9 (0.354) B1 : 4.5 (0.177) B2 : — W1 : 5.5 (0.217) d x G x h : 3.5 x 6 x 3.5 (.138 x .236 x .138) S3 N Type : — N : 7.5 (0.295) Weight : kgs (lbs) Carriage - Lb (kg) : 0.02 (0.044) Guide Rail - Lb/ft (kg/m) : 0.31 (0.208) : mm (in) Maximum Length : 1000 (39.37)
