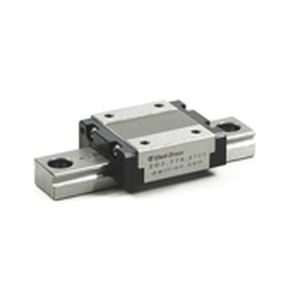

Linear guide with recirculating ball carriage BSGS13-1-120

steelprecisioncompact

Recirculating Ball Slide Guides (BSG) Family: BSGS13 Model: BSGS13-1-120 Price: $ 132.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 13 (.512) B : 27 (1.063) L2 : 34 (1.338) L1 : 30 (1.181) W : 3.5 (0.138) P1 : 20 (.788) P2 : 15 (0.591) S1 : M3 e1 : 3.5 (0.138) L3 : 23 (0.906) W2 : — S2 : — e2 : — b : 10 ( 0.394) Basic Load Ratings : kgf (lbf) Dynamic C : 220 (485) Static Co : 320 (705) Dimensions of Guide Rail : mm (in) P : 25 (0.984) H1 : 7.5 (0.295) C : 12 (0.472) B1 : 6 (0.236) B2 : — W1 : 7.5 (0.295) d x G x h : 3.5 x 6 x 4.5 (.138 x .236 x .177) S3 N Type : — N : 10 (0.394) Weight : kgs (lbs) Carriage - Lb (kg) : 0.04 (0.088) Guide Rail - Lb/ft (kg/m) : 0.61 (0.41) : mm (in) Maximum Length : 1000 (39.37)
