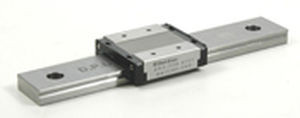

Linear guide with recirculating ball carriage BSG14W-1-230

precisionsteelcompact

Recirculating Wide Ball Slide Guides (BSG-W) Family: BSG14W Model: BSG14W-1-230 Price: $ 222.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 14 (0.551) B : 40 (1.575) L2 : 44.5 (1.752) L1 : 40.7 (1.602) W : 6 (0.236) P1 : 28 (1.102) P2 : 15 (0.591) S1 : M3 e1 : 3 (0.118) L3 : 33.5 (1.319) W2 : — S2 : — e2 : — b : 11 (0.433) Basic Load Ratings : kgf (lbf) Dynamic C : 300 (661) Static Co : 440 (970) Dimensions of Guide Rail : mm (in) P : 40 (1.575) H1 : 8 (0.315) C : 24 (0.945) B1 : 12 (0.472) B2 : — W1 : 8 (0.315) d x G x h : 4.5 x 8 x 4.5 (.177 x .315 x .177) S3 N Type : — N : 15 (0.591) Weight : kgs (lbs) Carriage - Lb (kg) : 0.08 (0.176) Guide Rail - Lb/ft (kg/m) : 1.4 (0.941) : mm (in) Maximum Length : 1900 (74.8x)
