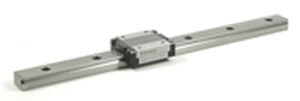

Linear guide with recirculating ball carriage BSG16-1-150

precisionsteelcompact

Recirculating Ball Slide Guides (RBSG) Family: BSG16 Model: BSG16-1-150 Price: $ 128.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 16 (.630) B : 32 (1.26) L2 : 42.5 (1.673) L1 : 38.5 (1.516) W : 3.5 (0.138) P1 : 25 (0.984) P2 : 20 (0.788) S1 : M3 e1 : 4 (0.157) L3 : 29.5 (1.161) W2 : — S2 : — e2 : — b : 12 (0.473) Basic Load Ratings : kgf (lbf) Dynamic C : 370 (815) Static Co : 550 (1212) Dimensions of Guide Rail : mm (in) P : 40 (1.575) H1 : 9.5 (0.374) C : 15 (0.591) B1 : 7.5 (0.295) B2 : — W1 : 8.5 (0.335) d x G x h : 3.5 x 6 x 4.5 (.138 x .236 x .177) S3 N Type : — N : 15 (0.591) Weight : kgs (lbs) Carriage - Lb (kg) : 0.06 (0.132) Guide Rail - Lb/ft (kg/m) : 1.02 (.685) : mm (in) Maximum Length : 1900 (74.8)
