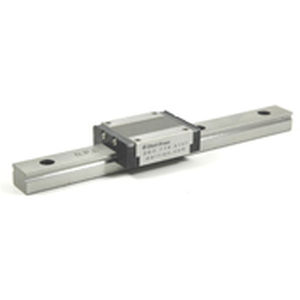

Linear guide with recirculating ball carriage BSGS25-1-880

precisionsteelcompact

Recirculating Ball Slide Guides (BSG) Family: BSGS25 Model: BSGS25-1-880 Price: $ 629.00 All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 25 (0.984) B : 46 (1.811) L2 : 62 (2.441) L1 : 55.7 (2.193) W : 4 (0.157) P1 : 38 (1.496) P2 : 38 (1.496) S1 : M4 e1 : 6 (0.236) L3 : 45.7 (1.799) W2 : — S2 : — e2 : — b : 17.5 (0.689) Basic Load Ratings : kgf (lbf) Dynamic C : 700 (1544) Static Co : 1000 (2205) Dimensions of Guide Rail : mm (in) P : 60 (2.362) H1 : 15 (0.591) C : 20 (0.788) B1 : 10 (0.394) B2 : — W1 : 13 (0.512) d x G x h : 6 x 9.5 x 8.5 (.236 x .374 x .335) S3 N Type : — N : 20 (0.788) Weight : kgs (lbs) Carriage - Lb (kg) : 0.23 (0.507) Guide Rail - Lb/ft (kg/m) : 2.14 (1.438) : mm (in) Maximum Length : 1000 (39.37)
