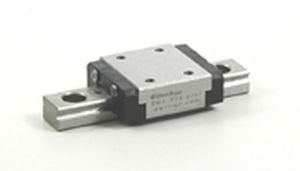

Linear guide with recirculating ball carriage BSGS8-1-55

precisionstainless steelcompact

Recirculating Ball Slide Guides (RBSG) Family: BSGS8 Model: BSGS8-1-55 Price: $ 90.00 - Options: Add Seal to single carriage model ($ 6.00) Add 0 carriage(s) without a seal ($ 66.00 ea.) Add 0 carriage(s) with a seal ($ 73.00 ea.) All dimensions in millimeters unless otherwise specified Total travel below is based on 1 carriage per rail Dimension of Carriage : mm (in) H : 8 (0.315) B : 17 (0.669) L2 : 23.5 (0.925) L1 : 21.9 (0.862) W : 2.5 (0.098) P1 : 12 (0.473) P2 : 8 (0.315) S1 : M2 e1 : 2.5 (0.098) L3 : 15.1 (0.594) W2 : — S2 : — e2 : — b : 6.5 (0.256) Basic Load Ratings : kgf (lbf) Dynamic C : 110 (242) Static Co : 170 (375) Dimensions of Guide Rail : mm (in) P : 15 (.591) H1 : 4.7 (0.185) C : 7 (0.276) B1 : 3.5 (0.138) B2 : — W1 : 5 (0.197) d x G x h : 2.4 x 4.2 x 2.3 (.094 x .165 x .091) S3 N Type : — N : 5 (0.197) Weight : kgs (lbs) Carriage - Lb (kg) : 0.01 (0.022) Guide Rail - Lb/ft (kg/m) : 0.19 (0.128) : mm (in) Maximum Length : 700 (27.6)
