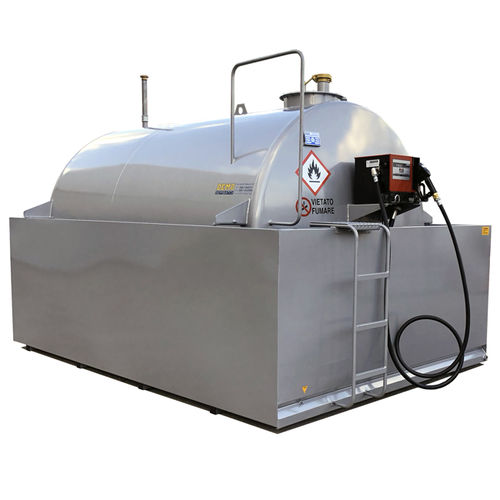

Diesel storage tank CUBE56

dispensingcarbon steelcylindrical

Approved dispensing tanks TANK-FUEL CUBE56 model for the storage and supply of diesel fuel with a 110% basin. MINISTERIAL DECREE 22/11/2017 TANK FUEL CUBE56 1X Homologation Ministry of the Interior n ° 3704/1366/80/37/44 Tanks homologated by the ministry of the interior according to the Ministerial Decree 19/03/90 and Ministerial Decree 22 november 2017. Tanks for diesel fuel, TANK-FUEL CUBE 56 mobile distributors, approved by the Ministry of the Interior according to Ministerial Decree 19/03/90 and Ministerial Decree 22/11/2017, subsequent modifications and extensions. They are equipped with a collection tank with a capacity of 110% of the total contents of the tank, a service ladder starting from 2,000 liters, a delivery system, and a protection roof * (following the provisions of the ministerial decree). The tanks and collection tanks are made of S235JR quality carbon steel, according to UNI EN 10025-2, and treated externally with two coats of primer and subsequent finishing with two coats of metallic gray synthetic enamel. They are equipped with drain or cleaning sleeve with 1 ″ galvanized cap, upper sleeve for level probe, connection for earth cable connection, manhole 400mm diameter, complete with bolts and gasket with 3 ″ filling port with quick lockable bayonet cap and 90% load limiting valve, vent with brass flame-stop terminal, mechanical level indicator with float, electrical panel and level probe.
