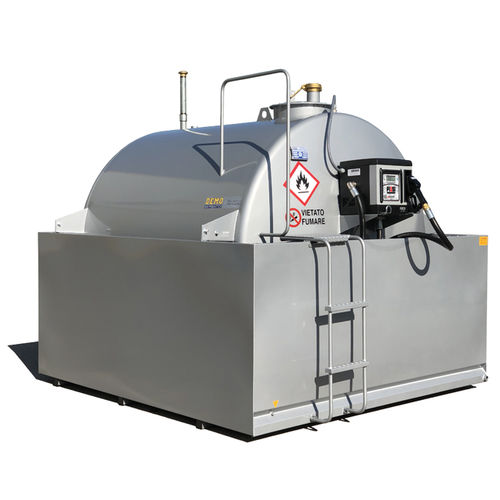

Diesel storage tank CUBE70 B.SMART

dispensingcarbon steelcylindrical

Approved dispensing tanks mod. TANK-FUEL CUBE70B.SMART electronic management of refueling, for storage and supply of diesel fuel with a 110% basin. Data connection and management via Bluetooth, WebApp, Cloud. MINISTERIAL DECREE22 / 11/2017 TANK FUEL CUBE70 B.SMART 1X Homologation Ministry of the Interior n ° 3704/1366/80/37/44 Tanks homologated by the ministry of the interior according to the Ministerial Decree 19/03/90 and Ministerial Decree 22 november 2017. Tanks for diesel fuel, mobile electronic distributors (with delivery control and management system) TANK-FUEL CUBE 70 B.SMART, approved by the Ministry of the Interior according to MINISTERIAL DECREE 19/03/90 and MINISTERIAL DECREE 22/11/2017 / subsequent modifications and extensions. They are equipped with a collection tank with a capacity of 110% of the total contents of the tank, a service ladder starting from 2,000 liters, a delivery system, and a protection roof * (following the provisions of the ministerial decree). The tanks and collection tanks are made of S235JR quality carbon steel, according to UNI EN 10025-2, and treated externally with two coats of primer and subsequent finishing with two coats of metallic gray synthetic enamel. They are equipped with a drain or cleaning sleeve with 1 “galvanized cap, an upper sleeve for level probe, connection for earth cable connection, 400mm diameter manhole, complete with bolts and anti-gas gasket with 3” loading mouth. with quick lockable bayonet cap and 90% load limiting valve, vent with brass flame-stop terminal, mechanical level indicator with float, electrical panel, and level probe (integrated).
