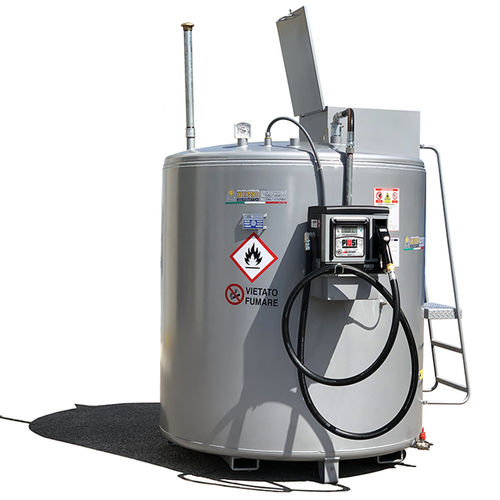

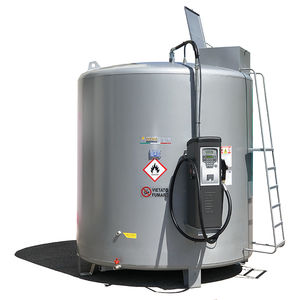

Diesel storage tank CUBE70 B.SMART

dispensingcarbon steelcylindrical

Vertical double chamber dispensing tanks, TANK-FUEL CUBE70 B.SMART approved model for diesel storage and supply. Data connection and management via Bluetooth, WebApp, Cloud. MINISTERIAL DECREE22 / 11/2017 TANK FUEL DC CUBE 70 B.SMART Homologation Ministry of the Interior n ° 3704 / 1671-37 / 122 Vertical tanks TANK-FUEL DC model CUBE 70 B.SMART, approved by the Ministry of the Interior according to the MINISTERIAL DECREE 22 November 2017. They are double-chamber vertical tanks, space-saving, equipped with dispensing systems. The internal chamber acts like a diesel oil deposit, while the watertight external chamber (safety tank), with continuous monitoring, guarantees the recovery of any product leaks and/or spills, by the provisions of Ministerial Decree 11/22/2017 for fire prevention purposes. The tanks are made of S235JR carbon steel according to the UNI EN 10025-2 standard, 3mm thick, and treated externally with a metallic gray paint cycle. They are equipped with 1 “internal suction pipe with non-return valve with calibrated spring, suction filter, 1” ball valve, 400 manhole type diesel fuel with 3 “load with quick brass bayonet coupling with a load-limiting valve at 90%, enclosed in an anti-spill chamber with hinged pad-lockable lid, 1 ″ 1/2 vent with brass flame cap, mechanical level indicator with float, connection for earth cable connection, ball valve for emptying cavity, with operating lever with key safety lock, access ladder to the manhole with non-slip steps in accordance with safety standards and containment tray for any leaks from the dispensing unit.
