Diesel storage tank MOVITANK

carbon steelcylindricalvertical

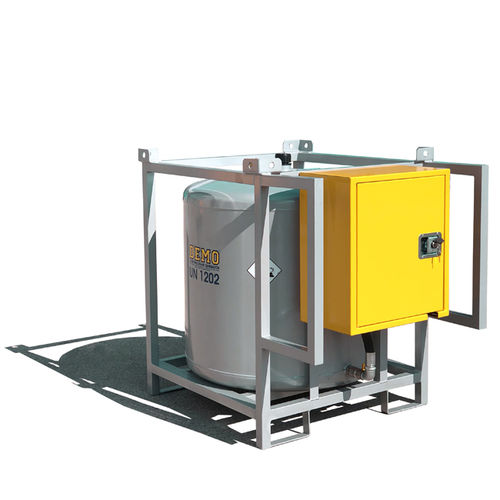

MOVITANK tanks for transporting DIESEL fuel on the road, in total ADR exemption, according to the provisions of paragraph 1.1.3.1 letter C MOVITANK TANK FOR FUEL TRANSPORT WITH TOTAL A.D.R. EXEMPTION MOVITANKtanks for diesel and petrol transport, are exempt from the obligations established by the A.D.R., for road transport (total exemption under ADR at point 1.1.3.1 letter C *). They are available in 330 liters and 420-liter capacities, they can be easily moved and installed on vans, pick-ups or small vehicles. The tanks are built in carbon steel, S235JR quality, according to UNI EN 10025/93, in vertical version, enclosed within a metal frame that guarantees the protection of the container in case of accidental impacts and/or in case of overturning (the metal pump-holder cabinet, all the safety devices, and the valves are positioned inside the frame). They are equipped with an internal anti-shaking bulkhead (breakwater), union with 2 “brass filler cap, 1” drain and cleaning sleeve with galvanized cap, 1 “suction sleeve, double-acting aeration valve with polyethylene fusible cap, to prevent the product from escaping in case tipping unit and 12 V or 24 V battery delivery unit. They are treated externally with RAL 9006 metallic gray paint. The handling of the tanks can be carried out from below, using forklifts or transpallets (the frame provides special housings for the insertion of forks in total safety with relative intermediate support bars), or from above with chains or bands, using four sturdy hooks welded to the structure. MOVI-TANK diesel transport tank with 12 V or 24 V delivery system in cabinet
