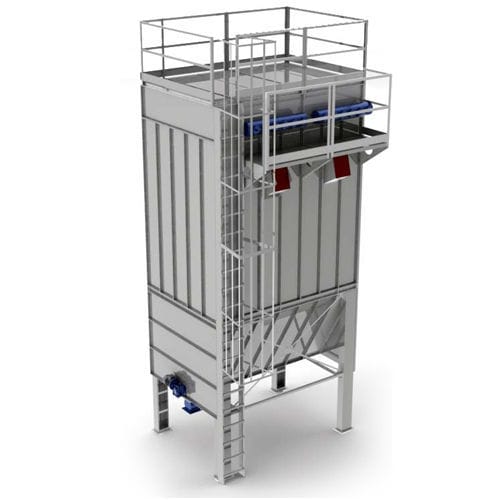

Air filter GI-M

dustpanelbag

Dena, leader nel campo della depurazione aria , progetta e realizza filtri a maniche GI-M, provvisti di pulizia automatica ad aria compressa, apposito per la filtrazione e relativa separazione di polveri medie, fini ed impalpabili. Il sistema di pulizia automatico consente di mantenere pressoché costanti le perdite di carico e quindi l’aspirazione costante. Dust air enters the top part of the separating chamber by means of the hole in the panel. The coarser dust present in the suctioned air is immediately depressed and drops in the container hopper because of the lessening of speed. Passing the separating chamber, the dust then enters the filtering sleeves passing from the outside to the inside, thereby depositing the impurities into the contain hopper. While in function, the filter is always kept at maximum efficiency through a system of cyclical cleaning moving in the opposite direction. A compressed blast of air, gathered in the correct tank , is rapidly injected into the inside if the filtering sleeves , creating a shakingly violent wave in the opposite direction. This enables it to release the dust particles and let them far from being deposited on the outside of the filtering sleeves. The screw moves the dust from alongside the star valve and in its turn will offload the dust cyclically. The dust collector is made entirely of very thick steel, opportunely worked and treated to make it last a long time. The filter has a filtering sleeves pneumatic cleaning system and a cyclical program me to wash the filtering sleeves. Besides, it also has complete inspection portals, fireproof portals and a dust container.
