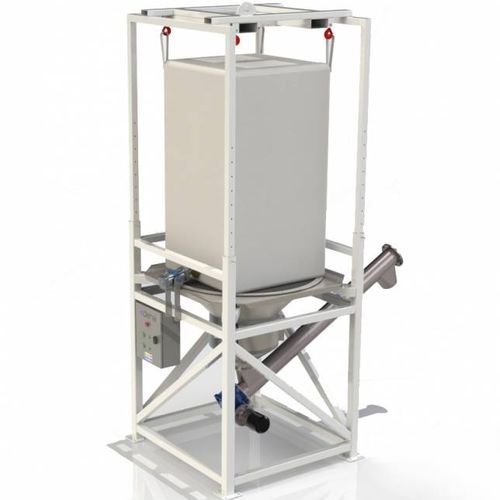

Bag emptying system SVBF

contained

The Big- Bag emptying machine model SVBF allows easy and quick emptying of the content of big-bags, with no leak in the air of the material contained therein. Operators are protected from accidental fall of big-bags during the emptying operation. The operator simply needs to hang the big-bag to the structure and proceed via auger or pneumatic transport, up to a maximum weight of 2,000 Kg. The emptying systems SVBF FIBC are available with a wide range of accessories such as: bottom cutting systems for big-bag non returnable; motorized closure system of the big-bag emptying station; big-bag trunk locking system; weighing and dosing systems of the extracted product. Using a forklift or crane to lift the big bag and hanging it at the top of the structure, the frame must be previously adjusted at the correct height, the Big- Bag is cut automatically by the cutting system and now is ready to start its emptying cycle. The structure is designed using finite element method (FEM analysis), respecting the rules of welding processes UNI EN 288-4. Made of carbon steel or stainless steel, while the vibrating hopper is made of carbon steel or stainless steel 304 or 316L. It is equipped with vibrator, vent fabric filter, electrical panel integrated in the structure, silicone or edpm rubber gasket, inspection door on the hopper.
