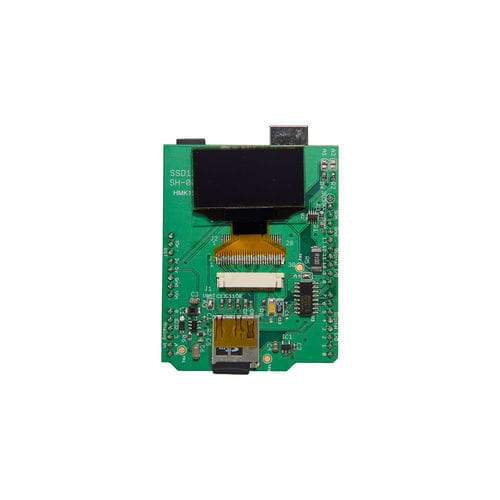

OLED display module DD-12864xx-xxmonochrome128 x 642.42"
Add to favorites
Compare this product
Characteristics
- Screen type
- OLED
- Type
- monochrome
- Format
- 128 x 64
- Screen size
- 2.42"
- Applications
- for medical equipment, for transportation
- Interface
- SPI, I2C
- Width
37 mm
(1.4567 in)- Height
60.5 mm
(2.3819 in)
Description
OLED 128 X 64, WHITE/GREEN/YELLOW MONOGRAPHIC, CONNECTOR TYPE 2.42"
Display
Brightness
100 cd/m²
Colour
white/ yellow/ green
Contrast Ratio
2000:1
Operating Temp Max
80°C
Operating Temp Min
-30°C
Viewing Angle
80/80/80/80
Other
Shape
Rectangular
Wide Angle Viewing
Yes
Touch Panel
No
Evaluation kit available
Yes
Range
OLED Displays
Sector
Broadcast, Medical, Security, Test and Measurement, Transport
Dimensions
Dimensions Depth
2.00 mm
Dimensions Height
60.50 mm
Dimensions Width
37.00mm
Mounting and Connectivity
Interface
12c, MPU, SPI Serial
Mechanical Mounting
Display
HMI
Multitouch
No
