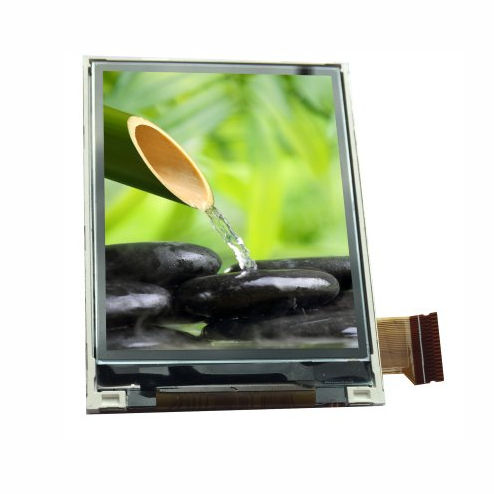

TFT display module DMT024QVNUNT0-2CIPS240 x 3202.4"
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, IPS
- Format
- 240 x 320
- Screen size
- 2.4"
- Applications
- for medical equipment, for transportation
- Width
60.4 mm
(2.378 in)- Height
42.72 mm
(1.6819 in)
Description
Shape
Rectangular
Wide Angle Viewing
No
Touch Panel
No
Display Tec
IPS
Evaluation kit available
Yes
Range
TFT Displays
Sector
Broadcast, Medical, Security, Test and Measurement
Display
Brightness
500 cd/m²
Operating Temp Max
70°C
Operating Temp Min
-20°C
Viewing Angle
80/80/80/80
Dimensions
Dimensions Depth
1.93 mm
Dimensions Height
42.72 mm
Dimensions Width
60.40mm
Mounting and Connectivity
Interface
MPU
Mechanical Mounting
Display
HMI
Multitouch
No
