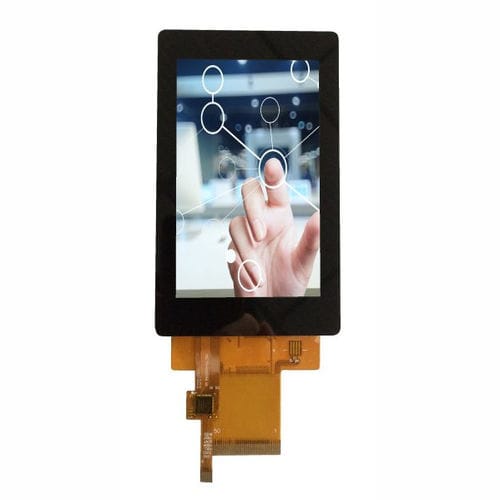

TFT display module DMT035QWNXCSI-1AIPSmultitouch screen320 x 480
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT, IPS, multitouch screen
- Format
- 320 x 480
- Screen size
- 3.5"
- Applications
- industrial, for medical equipment
- Interface
- RGB, SPI, I2C
- Width
96.04 mm
(3.7811 in)- Height
61.9 mm
(2.437 in)
Description
Shape
Rectangular
Wide Angle Viewing
No
Touch Panel
Yes
Display Tec
IPS
Evaluation kit available
Yes
Range
TFT Displays
Sector
Medical, Security, Test and Measurement
Display
Brightness
500 cd/m²
Operating Temp Max
70°C
Operating Temp Min
-20°C
Viewing Angle
80/80/80/80
HMI
HMI
Standard Touch
Multitouch
Yes
Touch Interface
I2C
Dimensions
Dimensions Depth
3.88 mm
Dimensions Height
61.90 mm
Dimensions Width
96.04mm
Mounting and Connectivity
Interface
MPU, RGB, SPI Serial
Mechanical Mounting
Display
