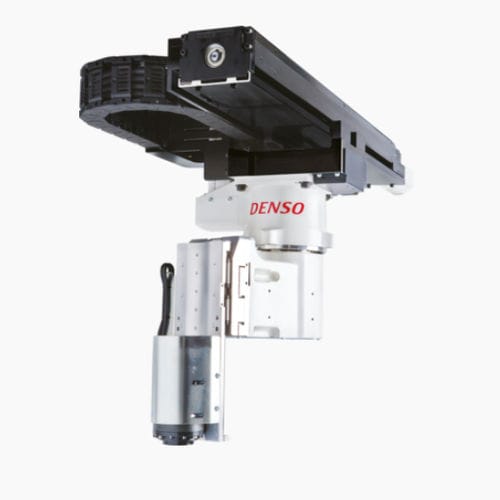

Gantry robot XR 6-axis4-axisfor assembly
Add to favorites
Compare this product
Characteristics
- Type
- gantry
- Number of axes
- 6-axis, 4-axis
- Function
- for assembly, pick-and-place, palletizing, feed
- Payload
5 kg
(11.023 lb)- Reach
135 mm, 200 mm, 450 mm, 760 mm, 1,060 mm
(5.31 in, 7.87 in, 17.72 in, 29.92 in, 41.73 in)- Repeatability
0.015 mm
(0.0006 in)
Description
Small gantry type
Small gantry
Cycle time of 0.56 sec
One cycle time is the time taken to move an object at a height of 25 mm between two points 300 mm apart
Accurate
Repeatability accuracy
Low maintenance
Lifetime grease lubrication
