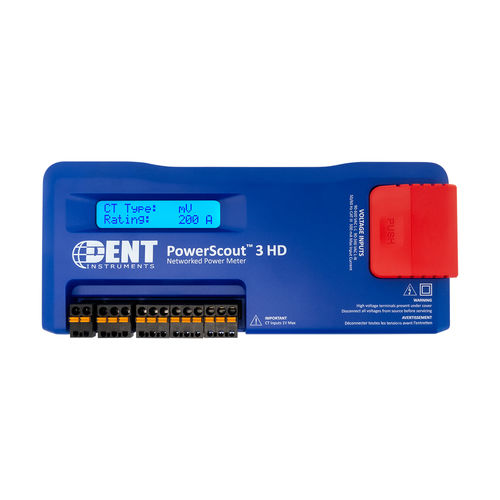

Energy meter power meter PowerScout 3 HD

digitalportablethree-phase

Ideal for Monitoring Building Mains The New PowerScout 3 HD is the latest model in the HD family replacing the PowerScout 3037 as DENT Instruments’ 3-channel 3-phase meter. DENT's single-point meter offering features increased measurement performance, industry-standard communications, and two form factors. It can utilize any of DENT’s internally-shunted, 333 mV output split-core or RōCoil CTs. Monitor a single three phase load or network with other PowerScout HD meters to monitor several loads across your facility. Revenue-Grade Performance With high speed continuous sampling, data updates rate of 1 Hz and ANSI C12.20-2015 Class 0.2 revenue grade accuracy (depending on CT), the PowerScout 3 HD is well-suited for accountability metering in commercial, retail, and industrial facilities including demand response and tenant submetering. Line or USB Powered PowerScout 3 HD instruments are line-powered with an internal wide-range power supply, allowing line-to-line voltages from 90-600 VAC. For convenience, the PS3HD also includes a USB (Type C) connector which allows the meter to be powered from a host PC or laptop computer during configuration. Industry-Standard Modbus or BACnet The PowerScout 3 HD supports both Modbus (based on SunSpec IEEE-754) and BACnet communications protocols. Communications interface can be accomplished through serial RS-485 or Ethernet using either Modbus RTU, BACnet MS/TP, Modbus TCP, or BACnet IP protocols. Quick Setup The PowerScout 3 HD can be quickly configured using one of two interfaces: ViewPoint HD PC Application or through a Web Browser.
