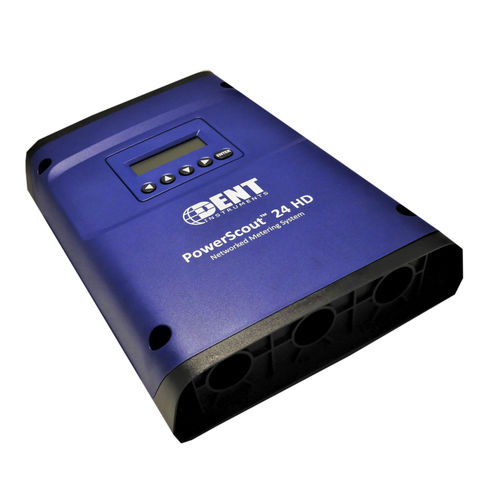

Power monitoring device PowerScout 24 HD

currentvoltagemulti-channel

PowerScout 24 HD Multi-Circuit Power Submeter Maximum Flexibility for Monitoring The flexible design of the PowerScout 24 HD allows it to be configured for monitoring any combination of up to 8 three-phase or 24 single-phase electrical circuits across two separate voltages with revenue grade accuracy (ANSI C12.20-2010 Class 0.2). Equip the PowerScout 24 HD meter with any combination of DENT's split-core, solid-core, or RoCoil (Rogowski) CTs. Easy Installation Every PowerScout is line powered and designed to operate on a broad range of voltages, from 90-600VAC, and features two separate voltage inputs. Modbus or BACnet protocols are field-selectable and any combination of split-core or flexible RōCoil CTs can be used. Configure the meter using the ViewPoint HD software utility and a direct USB connection prior to installation. Eliminate expensive trips back into the field: patented* PhaseChek™ Technology ensures proper CT-to-phase installation the first time. If ordered with an enclosure, 1-inch EMT conduit connects easily to the enclosure housing - no drilling required. Minimum Part Numbers, Maximum Features Keep it simple: Don't fight with a long list of SKUs only to realize an important feature is missing. All PowerScout HD Series Meters are equipped with smart, standard features like the flexibility to switch between Modbus® or BACnet®, Ethernet or Serial (RS-485), or the ability to use any millivolt CT, including Rogowski coils, on any channel.
