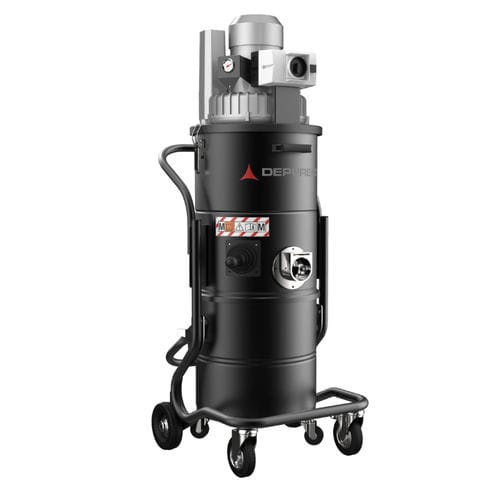

Industrial vacuum cleaner TB 18 M
drydustliquids

Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids
Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids
Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids - image - 2
Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids - image - 3
Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids - image - 4
Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids - image - 5
Industrial vacuum cleaner - TB 18 M - DEPURECO INDUSTRIAL VACUUMS - dry / dust / liquids - image - 6
Add to favorites
Compare this product


Characteristics

Domain
industrial
Type
dry
Substance vacuumed
dust, liquids, safety
Power source
three-phase
Container type
steel
Configuration
wheel-mounted
Other characteristics
compact
Applications
for the pharmaceutical industry
Power

1,800 W
(6,141.85 BTU/h)

Capacity

45 l
(11.9 gal)

Air flow

250 m³/h
(8,828.7 ft³/h)

Vacuum

Min.: 230 mbar
(3 psi)

Max.: 280 mbar
(4 psi)

Noise level

74 dB

Weight

50 kg
(110.23 lb)

Height

1,353 mm
(53.3 in)

Length

620 mm
(24.4 in)

Width

550 mm
(21.7 in)

Description

The TB 18 M model is an industrial vacuum fitted with a 230V side channel turbine (Made in Italy), ideal for working continuously without the need for maintenance. The filter chamber contains a large surface polyester filter, certified as M Class (1-micron filtration efficiency), ideal for working with even the finest dust. In this industrial vacuum of the Depureco three-phase range, a different filter can be installed depending on the professional application. Teflon water-repellent filters, Nomex 250°C resistant filters, filters with PTFE treatment for more binding and difficult dust are also available. The unit can be fitted with an H14 absolute filter on demand. The TB industrial vacuum is equipped with a large 45 lt detachable container that allows the operator to empty the vacuumed material easily. Disposable collection bags can also be used. A floating system can be provided in the container to vacuum liquids in complete safety. SUCTION UNIT The suction unit is a side channel blower with direct coupling between motor and impeller. The side channel blower is equipped with a safety valve to guarantee a totally safe continuous work, without any maintenance. M CLASS FILTER The filtration is guaranteed by a M class polyester filter. The star shape permits the passage of the air also when the filter is dirty. The textile of the filter is in M Class (BIA | En 60335-2-69). It means that all particles till 1 micron are stopped by the filter so as to protect the motors and the operator near the vacuum cleaner. FILTER SHAKER On one side of the filtration chamber there is an ergonomic manual shaker that permits to clean the filter easily and quickly,
