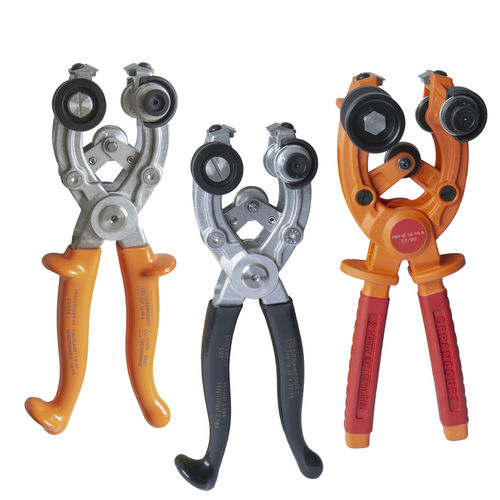

Cutting wire stripper PAD - PBT - PBT IS - Modèle A

for cablesinsulated

Remove the outer sheath from a cable Characteristics : Ø 10 to 45 mm 3 circular cutting blades 1 longitudinal cutting blade Centrally hinged device Complies with SERECT technical specifications: LV Live working n° 537 Ref : PAD (XX) (YY) A Non-insulated Aluminum model Black ergonomic handle Size : 283 x 78 x 80 mm weight : 600 g Ref : PBT (XX) (YY) A Insulated Aluminum model 1000V IEC EN 60900 Size : 283 x 78 x 90 mm weight : 680 g Ref : PBT IS (XX) (YY) A Hybrid model made from composite material. 1000V IEC EN 60900 Size : 270 x 81 x 95 mm weight : 550 g IMPORTANT: Select a circular cutting depth which is less than or equal to the longitudinal cut depth Specify the circular and longitudinal cutting depths : 0,2 | 0,4 | 0,6 | 0,8 | 1,0 | 1,2 | 1,4 | 1,6 | 1,8 | 2,0 | 2,2 | 2,4 | 2,6 | 2,8 | 3,0 | 3,2 | 3,4 | 3,6 | 3,8 | 4,0 mm Example for a circular cutting depth of 1.8 mm and 2.2 mm in the longitudinal direction : references PAD 18 22 A / PBT18 22 A / PBT IS 18 22 A The PBT 12 16 A ENEDIS Name no 07 83 665, PAD 12 16 A ENEDIS Name no 07 83 668 or PBT IS 12 16 A model strips the following with only one stripping pliers : Branch cables with neutral shielding, HM27/03/139B single phase and three-phase. underground cables NFC 33-210 cross-sections of 25, 35, 50, 95, mm² Overhead twisted cables NFC 33-209 cross-sections from 25 to 150mm². External sheath of shielded telereport cable NFC 33-400, Ø10 mm min. Industrial cables U1000R02V, Ø10 to 45 mm
