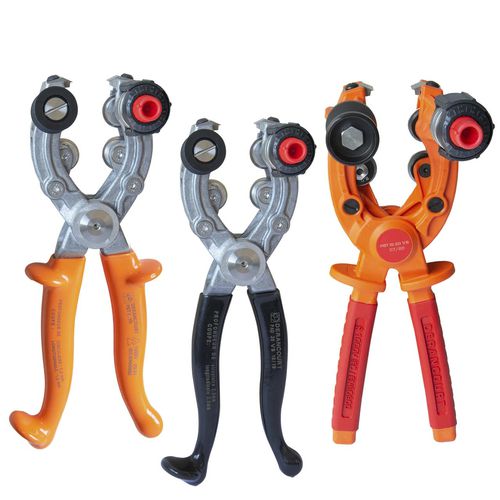

Cutting wire stripper PAD - PBT - PBT IS - Modèle VB
for cablesinsulated

cutting wire stripper
cutting wire stripper
cutting wire stripper
cutting wire stripper
cutting wire stripper
cutting wire stripper
Add to favorites
Compare this product


Characteristics

Type
cutting
Applications
for cables
Other characteristics
insulated

Description

Remove the outer sheath from a cable Characteristics : Ø 20 to 55 mm 4 circular cutting blades 1 longitudinal cutting blade, depth adjustable between 0 and 4 mm. Twin lateral hinge device Complies with SERECT technical specifications: LV Live working n° 537 Ref : PAD (XX) VB Non-insulated Aluminum model Black ergonomic handle Size : 283 x 78 x 80 mm weight : 650 g Ref : PBT (XX) VB Insulated Aluminum model 1000V IEC EN 60900 Size : 283 x 78 x 90 mm weight : 680 g Ref : PBT IS (XX) VB Hybrid model made from composite material. 1000V IEC EN 60900 Size : 270 x 81 x 95 mm weight : 590 g IMPORTANT: The operator adjusts the longitudinal cutting depth according to the sheath thickness, using the graduated wheel Specify the circular and longitudinal cutting depths : 0,2 | 0,4 | 0,6 | 0,8 | 1,0 | 1,2 | 1,4 | 1,6 | 1,8 | 2,0 | 2,2 | 2,4 | 2,6 | 2,8 | 3,0 | 3,2 | 3,4 | 3,6 | 3,8 | 4,0 mm Example : for a circular cutting depth of 1.8 mm : reference PAD 18 VB / PBT18 VB / PBT IS 18 VB The PBT 20 VB, PAD 20 VB, PBT IS 20 VB, model enables the following cables to be stripped with only one stripping pliers : HN33S33 NFC33210 from 50 to 240 mm²
