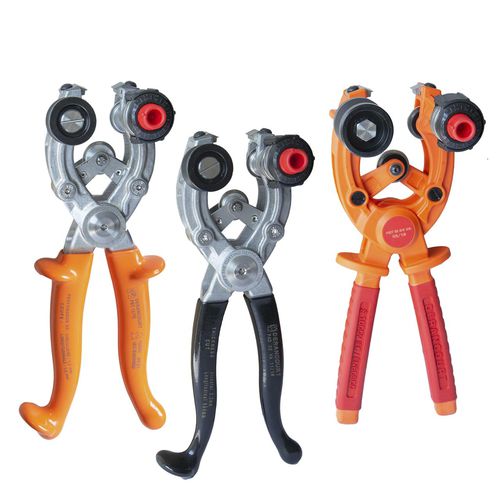

Cutting wire stripper PAD - PBT - PBT IS - Modèle VA

for cablesinsulated

Remove the outer sheath from a cable Characteristics : Ø 10 to 45 mm 3 circular cutting blades 1 longitudinal cutting blade, depth adjustable between 0 and 4 mm. Centrally hinged device Complies with SERECT technical specifications: LV Live working n° 537 Ref : PAD (XX) VA Non-insulated Aluminum model Black ergonomic handle Size : 283 x 78 x 80 mm weight : 640 g Ref : PBT (XX) VA Insulated Aluminum model 1000V IEC EN 60900 Size : 283 x 78 x 90 mm weight : 670 g Ref : PBT IS (XX) VA Hybrid model made from composite material. 1000V IEC EN 60900 Size : 270 x 81 x 95 mm weight : 580 g IMPORTANT: The operator adjusts the longitudinal cutting depth according to the sheath thickness, using the graduated wheel Specify the circular cutting depth : 0,2 | 0,4 | 0,6 | 0,8 | 1,0 | 1,2 | 1,4 | 1,6 | 1,8 | 2,0 | 2,2 | 2,4 | 2,6 | 2,8 | 3,0 | 3,2 | 3,4 | 3,6 | 3,8 | 4,0 mm Example : for a circular cutting depth of 1.8 mm : reference PAD 18 VA / PBT18 VA / PBT IS 18 VA The PBT 12 VA , PAD 12 VA or PBT IS 12 VA ENEDIS Name no : 07.83.666 model strips the following with only one stripping pliers : Branch cables with neutral shielding, HM27/03/139B single phase and three-phase. Underground cables NFC 33-210 cross-sections of 25, 35, 50, 95, mm² Overhead twisted cables NFC 33-209 cross-sections from 25 to 150mm². External sheath of shielded telereport cable NFC 33-400, Ø10 mm min. Industrial cables U1000R02V, Ø10 to 45 mm
