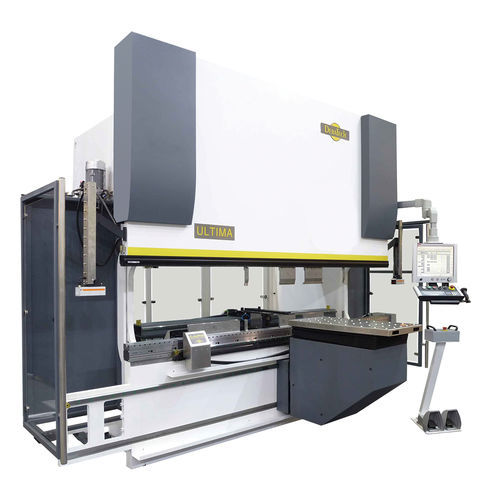

Hydraulic press brake UAD series

CNCprecisiontandem

Ultima is a high-end CNC-controlled press brake with hydraulic crowning (on request mechanical crowning) in a basic but very complete configuration. The Ultima machine is equipped with 5 CNC-controlled axes (Y1-Y2, X, R, V). Optional up to 18 CNC-controlled axis. Ultima offers the user a heavily built, reliable, precision CNC press brake at an economical price. The high precision digital encoders at both sides of the machine continuously measure the movement and position of the upper beam (axes Y1-Y2). The data is processed and monitored by the CNC controller which controls the hydraulic valves. An extremely high level of accuracy is obtained during the movement and final positioning of the upper beam due to the continuous monitoring and feedback of the encoder measuring data. Using this technology, a repeatability of approximately 100% (+/- 0.01 mm) can be guaranteed. The synchro system permits two or more machines to be connected together in tandem to provide working lengths of 20 meters or longer and tonnage up to 1250ton of pressing force. In this tandem configuration, the individual machines can still be used separately. The new Ultima, model 2019, can be equipped with a touch screen PC-based with dual screen. The first screen shows all the program data and the positioning of the axis and can show the product in 2D or 3D. While operating the machine the second screen can run offline software and calculate the next bending application or show the part in 3D if you show the program data on the first screen. The second screen can be useful also for application for industries 4.0 … An Ultima with double screen controller is yet another step
