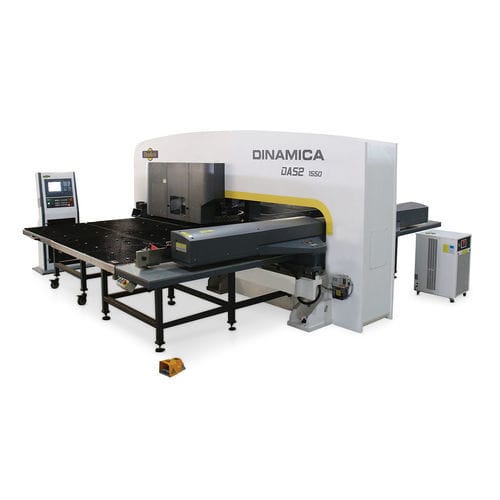

CNC punching machine DAS series

hydraulicservo-electricforming

Dinamica, the new generation of high efficiency servo-electric punching technology. Energy saving, high accuracy and low cost maintenance. The servo-mechanically driven punching stroke is CNC-controlled, available in 20 ton or 30 ton punching force. The Dinamica is equipped with a Siemens CNC controller, resulting in an unmatched high-performance punching, energy saving, superior reliability, outstandingly accurate forming capacity. Our Dinamica is saving up to 60% of electrical power over typical hydraulic machines. The Heavy Duty "O" type frame is engineered to ensure tighter tolerances, distortion free parts and perfect tool alignment. Complete annealing of the frame after welding to eliminate internal stress. The frame is built to last a life time... Our turret of tooling, is a thick turret system, provides high flexibility with superior guiding, extended tool life and a minimum tool maintenance. A maximum feed clearance between the upper and lower turret allows for the production of higher forms such as lances, louvers, emboss,... The versatile mix of turret stations includes a High precision auto index, compact structure with gear drive. Available in D station. Large brush table design provides low noise during the punching operation, scratch-free processing, eliminating secondary finishing. Availabe in different size of axis: 1500 x 2500 (5000 with repositioning) , 2100 x 3200 , …. For our Dinamica we offer a wide range of unloading and loading systems.
