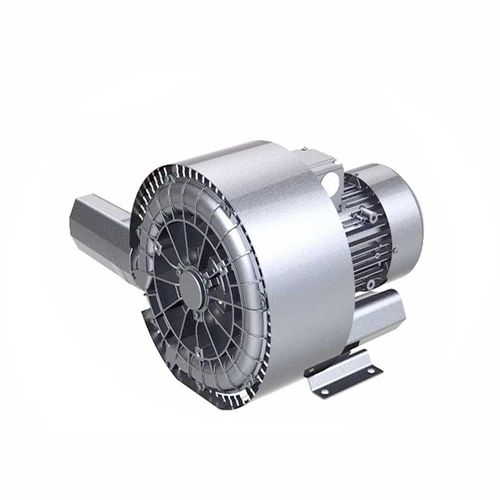

Air blower DHB 930C 12D5side-channelsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Flow
Min.: 1,370 m³/h
(48,381.093 ft³/h)Max.: 1,650 m³/h
(58,269.2 ft³/h)- Operating pressure
Min.: -190 mbar
(-2.756 psi)Max.: 180 mbar
(2.611 psi)- Nominal power
Min.: 12.5 kW
(16.995 hp)Max.: 14.5 kW
(19.715 hp)
Description
General features:
●Max Air flow to 2480m3/h;
●Rated vacuum to -730mbar;
●Rated pressure to 1040mbar;
●IE2/IE3 high efficiency is available;
●With Thermal protection (PTC);
●100% Oil free, Easy installation, Maintance free;
●CE, ROHS,UL,ATEX certification approvaled;
●Broadband frequency and voltage used worldwide;
●High quality bearing used to Anti-high temperature to 180℃-200℃；
