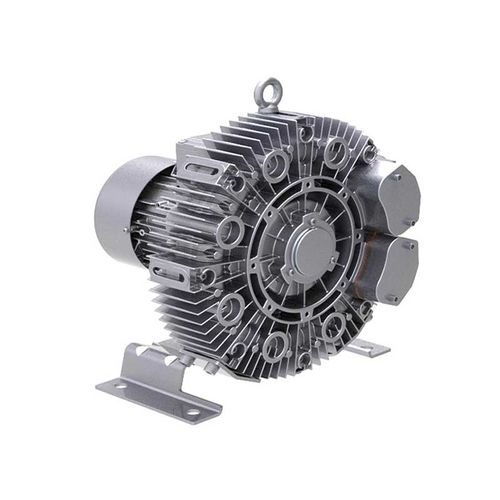

Air blower DHBT 650C 7D5side-channelsingle-stagehigh-pressure
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Other characteristics
- high-pressure
- Flow
Max.: 200 m³/h
(7,062.933 ft³/h)Min.: 170 m³/h
(6,003.493 ft³/h)- Operating pressure
Max.: 1,040 mbar
(15.084 psi)Min.: -730 mbar
(-10.588 psi)- Nominal power
Max.: 8.6 kW
(11.693 hp)Min.: 7.5 kW
(10.197 hp)
Description
General features:
●Max Air flow to 2480m3/h;
●Rated vacuum to -730mbar;
●Rated pressure to 1040mbar;
●IE2/IE3 high efficiency is available;
●With Thermal protection (PTC);
●100% Oil free, Easy installation, Maintance free;
●CE, ROHS,UL,ATEX certification approvaled;
●Broadband frequency and voltage used worldwide;
●High quality bearing used to Anti-high temperature to 180℃-200℃；
