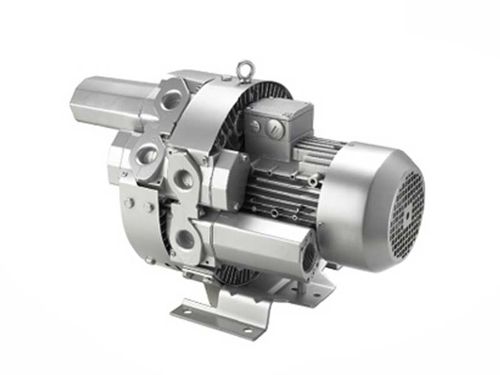

Air blower DHBT 320B 1D1side-channelsingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Flow
Max.: 76 m³/h
(2,683.915 ft³/h)Min.: 65 m³/h
(2,295.453 ft³/h)- Operating pressure
Max.: 480 mbar
(6.962 psi)Min.: -480 mbar
(-6.962 psi)- Nominal power
Max.: 1.3 kW
(1.768 hp)Min.: 1.1 kW
(1.496 hp)
Description
General features:
●Max Air flow to 2480m3/h;
●Rated vacuum to -730mbar;
●Rated pressure to 1040mbar;
●IE2/IE3 high efficiency is available;
●With Thermal protection (PTC);
●100% Oil free, Easy installation, Maintance free;
●CE, ROHS,UL,ATEX certification approvaled;
●Broadband frequency and voltage used worldwide;
●High quality bearing used to Anti-high temperature to 180℃-200℃；
