Centrifugal separator

liquids

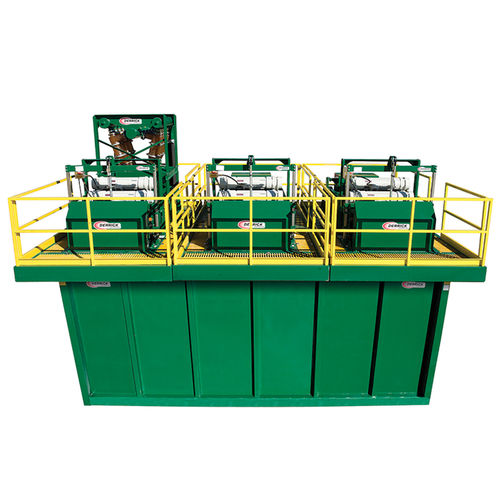

Utilizing Platform Strategy, Derrick’s versatile Modular Slurry Separation Plant can be used for various civil construction applications such as horizontal drilling, microtunneling, and slurry wall milling. The innovative design provides optimal flexibility for a wide range of ground conditions. The plant integrates a three-chambered modular base tank with electrical control panel, one or two centrifugal pumps to feed the hydrocyclones, and shaker platform(s). The base tank can accommodate up to three Derrick equipment platforms for multiple slurry separation equipment combinations to meet the end-user requirements. 20′ Base Tank FLC™ 2000 4-Panel FLC 2000 4-Panel with 6″ Cones DE-1000™ FHD™ Centrifuge Cascade 2000 FEATURES & BENEFITS 20' BASE TANK 238.1’’ (L) x 95.8’’ (W) x 102.1” (H) Approximately 6200 gallon capacity Accommodates up to three equipment platforms (3rd platform requires platform extensions) (3) Chambered construction Integrated hydrocyclone feed pump(s) 8 x 6 x 14 with 75HP Motor Common Electrical Panel (460v, 60Hz, 3 Phase) Stairwell with handrails
