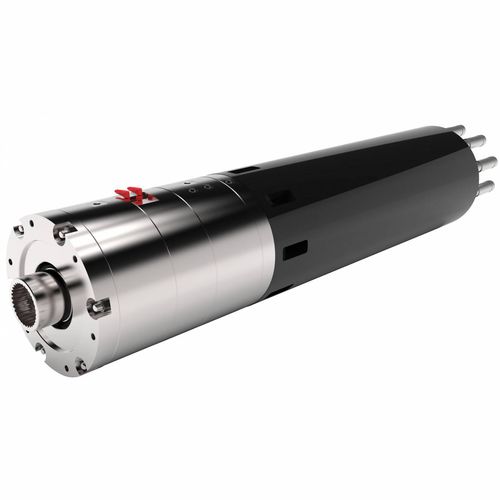

Planetary gearbox Denox® HS

2 - 5 kNm> 10 kNm5 - 10 kNm

The Nidec DESCH motor gearbox series Denox®, which is already widely used as main spindle drives in many machine tools, receives a new modular extension. In order to meet the demand for optimum availability with maximum flexibility at the same time, two new design lines Nidec DESCH Denox® BASE-Line and Nidec DESCH Denox® FLEX-Line have been developed. The new Nidec DESCH Denox® BASE-Line stands for a standardized motor gearbox unit in a pre-configured design, which stands out especially high availability at the same time as the standard price level and of course still guarantees the high Nidec DESCH quality promise. General features • Stocked components • Set up for vertical and horizontal installation position • Fixed installation dimensions (D) • Cutting fluid tube integrated • Media supply via motor - B side (e.g. lubricating and shifting oil) Motor • Defined motor variants • Defined mounting flange and centering Planetary shifting gearbox • Shaft diameter range pre-selected • Defined output flange with arbitrary inner centerings • Gear ratio i = 1/5 • Integrated temperature sensor and shifting monitoring Motor Gearbox Unit Denox® HSE (FLEX-Line) The Nidec DESCH Denox® FLEX-Line represents the entire customized concept that has always been lived at Nidec DESCH. Especially as a customer-specific inline drive solution for direct RAM installation, the Nidec DESCH Denox® FLEX-Line series offers many technical options to choose from, as well as a high flexibility for special design requirements. General features • Individually configurable • Specific adaptation to the installation situation • Variable media supply (axial and/or radial)
