Fieldbus PID controller FMC series

2 analog inputspanel-mount

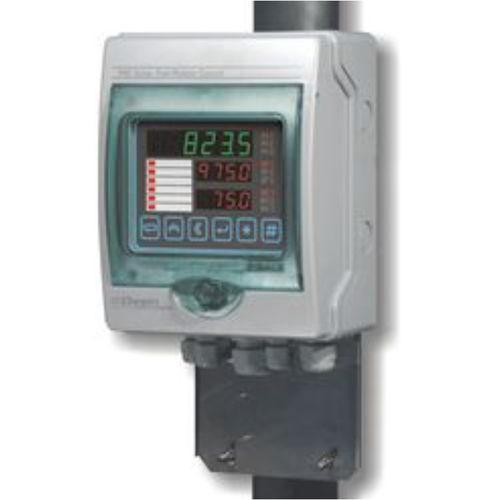

These FMC Series are configurable or programmable controllers (acc/model) for field mounting with RS-485 communication. They have inputs adapted to the most common measurement probes. Its multivariable capacity allows them to realize several functions of independent way or connected to a field bus to form networks of distributed control and to be supervised by PC. Their characteristics of PID control and protection IP65 allows that they can work near of process without mounting in control box. Appropriate for field control of any type of automatization, with drives and/or analog signals processing, in supervision and control of industrial process in remote way. Field Mounting Controllers Range FMC-2000 Medium Range Low Cost with 1 signal input. 1-loop configurable PID controller to measure, control or/and to transmit process variables. • 1 input: Pt100, T/C (CJC), mV and 4-20 mA • 1 output: 0..4-20 mA to control or transmission • 2/3 relay outputs to control and alarms FMC-4000 High Range with 2 signal inputs 2-loops configurable PID controller to measure, control or/and transmit process variables. Function blocks programmables allowing to realize specific control systems to any process. • 2 inputs: Pt100, T/C (CJC), mV and 4-20 mA • 2 outputs: 0..4-20 mA to control or transmission • 2 relay outputs to control and alarms FMC-5000 High Range with 2/3 signal inputs 2-loops configurable PID controller to measure, control or/and transmit process variables. Factory programmed to realize specific control systems to any process. • 2/3 inputs: Pt100, T/C (CJC), mV and 4-20 mA • 2 outputs: 0..4-20 mA to control or transmission • 4 relay outputs to control and alarms
