Oil skimmer DBD
pneumaticsurface

oil skimmer
oil skimmer
oil skimmer
oil skimmer
oil skimmer
oil skimmer
Add to favorites
Compare this product


Characteristics

Technology
pneumatic
Separated substance
oil
Other characteristics
surface
Flow

16 m³/h, 24 m³/h
(565.035 ft³/h, 847.552 ft³/h)

Length

27 in

Width

69 cm
(27 in)

Weight

31.5 kg, 36 kg
(69.45 lb, 79.37 lb)

Description

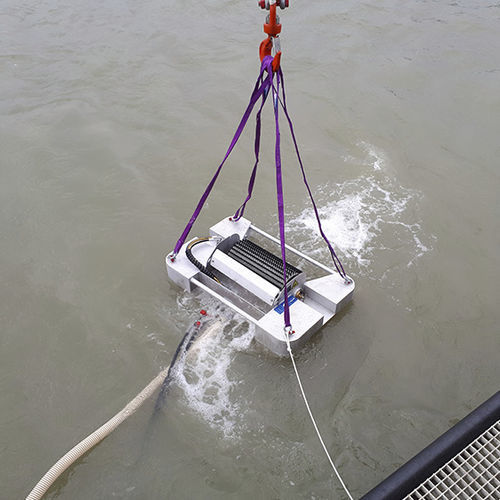

The DBD excels in a wide range of oils from light to heavy. The Disc/Brush/Drum is a high efficiency skimmer for industrial, harbour and coastal water applications. The DBD excels in a wide range of oils from light to heavy. The BRUSH banks are available to enhance heavy oil recovery and the Disc/Drum banks are available for light to medium oil recovery. These units simply slip in and out of the skimmer head. The DBD skimmers may be supplied as independent units or as modules that fit on top of other skimmers such as the TARANTULA, TERMINATOR, TERMITE or DOP-DUAL 250. The DBD skimmers are produced in a variety of configurations – single, twin or triple banks of rotating oleophilic (oil attracting) Disc, Brush or Drum. Independent hydraulic, electric or pneumatic motors drive these discs. Oil is recovered from the water as it adheres to the surface. As the discs, drum or brushes are rotated through the skimmer head oil is collected in the central sump on a continuous basis. The skimmers have high efficiency - up to 99 percent! Speed can be varied to optimise efficiency according to conditions. The marine versions of the DBD skimmers are hydraulically driven and available with powerful thrusters for remote positioning of the skimmer head. These skimmers may be supplied as independent units or as modules that fit on top of other skimmers such as the TARANTULA, DOP-DUAL 250, TERMINATOR or TERMITE. The industrial DBD skimmer is offered in a choice of sizes and drives to suit the application. • Can be supplied with Disc or Brush-drum banks • Extremely simple design uses a standard suction pump
