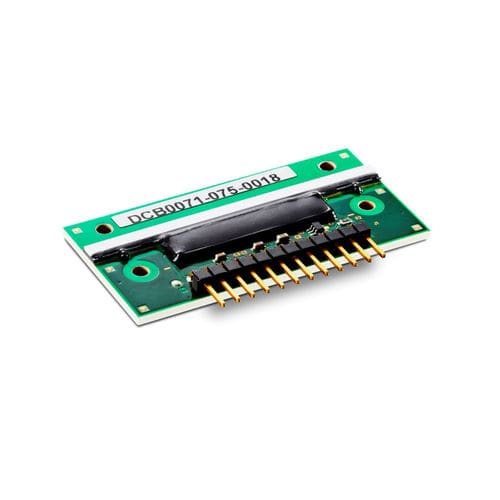

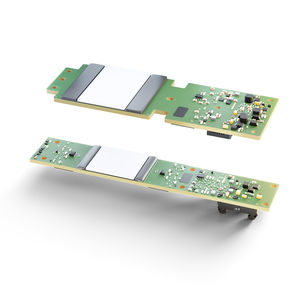

X-ray detector card X-CARD

X-CARD 0.2 TO 2.5 MM High performance linear array detector cards with preamplifier ASICs. Share on FacebookTweet about this on TwitterShare on LinkedInEmail this to someone A product family of high performance linear X-ray detector cards with preamplifier ASICs. The preamplifier ASIC converts the charge output from the photodiode array into voltage with serial output for easy integration with readout electronics. Can be arranged end-to-end to form large linear detector arrays. Pixel pitches of 1.5, 1.6 and 2.5 mm are available with various scintillator options to suit a wide range of applications with X-ray energies from 30 to 450kVp. X-Card2 is available in pixel pitches of 0.2, 0.4 and 0.8 mm and offers key benefits for smaller pixel pitches of increased sensitivity and long life due to maximized radiation hardness. Available with scintillator options to suit a wide range of applications with X-ray energies from 30kVp to 9MeV. BENEFITS Suitable for diverse industrial and security applications including food, pharmaceutical inspection and industrial non-destructive testing Industry-leading image quality and speed with DT proprietary photodiodes and ASICs FEATURES Detectable energy range: 30kVp to 9MeV Pixel pitch: 0.2, 0.4, 0.8, 1.5, 1.6, 2.5mm Dynamic range: >8000 (0.2, 0.4, 0.8mm), >4000 (1.5, 1.6, 2.5mm)
