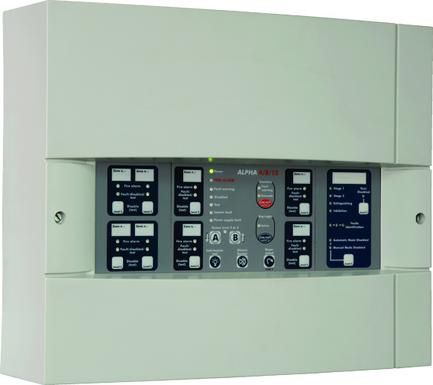

Fire alarm control panel ALPHA 4/8/12

automaticmodular

Modular microprocessor-controlled fire alarm panel for connection of all components of the 05 series. Approved according to EN 54-2: 1997/A1: 2006, EN 54-4: 1997/A1: 2006/A2: 2006 and EN 12094-1 • Clear display and simple operation via LED displays and operating keys • Basic version with 4 limit value groups for subscribers of the 05 series with up to 32 automatic detectors or 10 manual call points per detector group (max. 128 detection points)" • 1 alarm and 1 fault relay • 1 monitored siren output 450 mA • 4 programmable OC outputs, 1 programmable input • Two expansion slots for flexible system expansion to max. 12 limit value groups (384 detector points) • Interface card for extinguishing area control available on request • Interface card for hazardous areas available • Relay and signaling lines expandable • Direct connection of special detectors possible • Integrated power supply according to EN 54-4: 1997/A1: 2006/A2: 2006 • Independent connection of the detector and alarm generator groups • Individual programming via menu keys, e.g. alarm delay, fast mode, day/night mode • 3 access level • Integrated one-man revision mode • Connection of parallel display panels for collective messages (optional)
