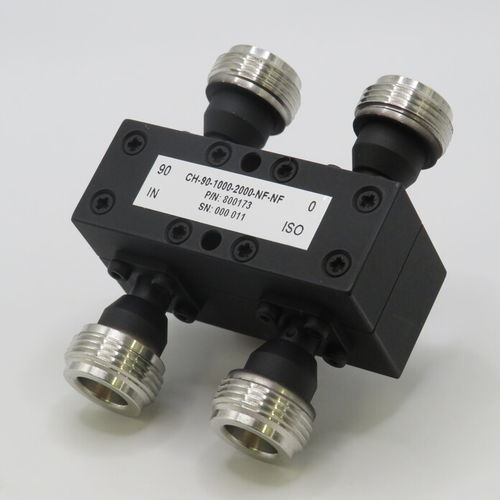

RF hybrid coupler CH-90-1000-2000-400-NF

directionalcoaxial

This 90° 3dB hybrid coupler covers the range 1000 – 2000 MHz and provides a great isolation > 20 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.25:1 on its main line and can handle up to 400 W of power. This 90° Hybrid Coupler 800173 allows you to split a 1000 to 2000 MHz input signal into two output signals with a 90° phase shift. Also kown as a quadrature coupler, it shows very low insertion losses < 0,5 dB, vswr < 1.25:1 and phase/ amplitude balance (5° / 0,5 dB) while keep a strong 20 dB of isolation. This coupler is ROHS compliant. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty. Please feel free to ask if you need any customisation or answers to your questions about this product.
