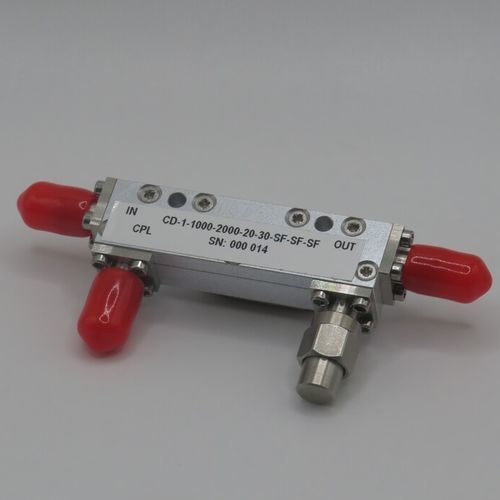

Directional coupler CD-1-1000-2000-20-30-SF-SF-SF

This 20 dB stripline directional coupler covers the range 1000-2000 MHz and provides a great directivity > 23 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 30 W. This Stripline Coupler 800060 allows you to sample 20 dB of any of your signals ranging 1000 to 2000 MHz and with a continuous power < 30 W. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( 23 dB which is related to the isolation between input port and coupling port. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty. Please feel free to ask if you need any customisation or answers to your questions about this product.
