RF combiner CO-16-2025-2120-40-SF-716F

high-power

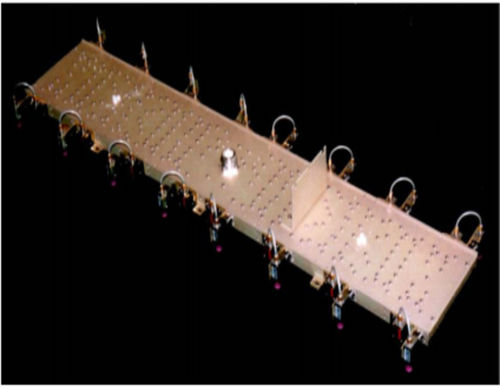

This 16-way Gysel power combiner covers the 2025-2120 MHz frequency range, and can output up to 640 W of continuous power. This device shows a great VSWR <1.25:1 and a high isolation of 25 dB. As all our products it is made in-house and comes a 3 years warranty. This Gysel power combiner (Part number: 001144) allows you to merge 16 in-phase signals into 1 on the 2025 – 2120 MHz frequency range. It can output up to 640 W CW on a large operating temperature range of 0°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.25:1), and low insertion losses(<0.5dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (25 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
