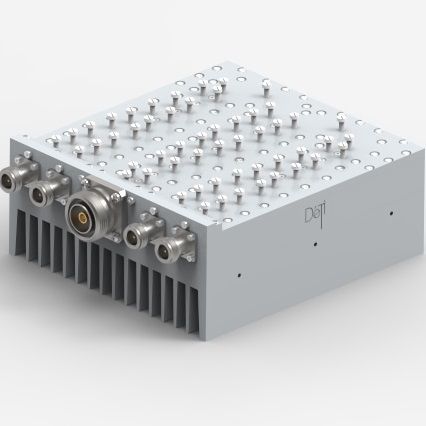

High-power combiner CO-4-400-6000-800-NF-716F

This 4-way wide-band Wilkinson power combiner covers the 400-6000 MHz frequency range, and can output up to 1000 W of continuous power. This device shows a great VSWR <1.8:1 and a high isolation of 12 dB. As all our products it is made in-house and comes a 3 years warranty. This power combiner (PN 800297) allows you to merge 4 in-phase signals into 1 on the 400 – 6000 MHz frequency range. It can cope with up to 250 W CW per input on a large operating temperature range of 0°C to +40°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.8:1), and low insertion losses(<1.2dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (12 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
