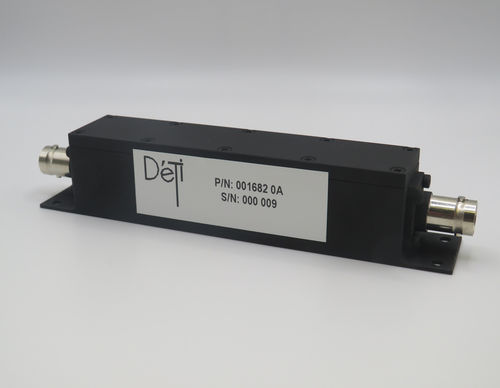

Low-pass electronic filter LPF-LP-6.8-50-1.25-BF-BF

powerDCsignal

This low pass filter offers a passband from DC to 4,9 MHz with 0,5 dB of insertion losses and a high rejection of 100 dB at 18 MHz. Fitted with BNC connectors, it offers a VSWR of 1.5:1 and a power handling of 10 W average. This Lumped Elements Low Pass Filter (PN: 001682) is able to let your signal pass from DC to 4,9 with very low insertion losses < 0,5 dB. This product allows you to cut off unwanted frequencies starting from 18 MHz with a very high attenuation of 100 dB. This filter (PN 001682) can handle power up to 10 W CW in a low form factor of 133 x 26 x 23 mm (5,24 x 1,02 x 0,91 Inche(s)). This low-pas filter is ROHS compliant and it doesn’t contain REACH SVHCs. This device is operational in a temperature range of 0 ° C to +50 ° C and a relative humidity of 90%. It can handle a storage temperature ranging from -20 ° C to +70 ° C. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty. Please feel free to ask if you need any customisation or answers to your questions about this product.
