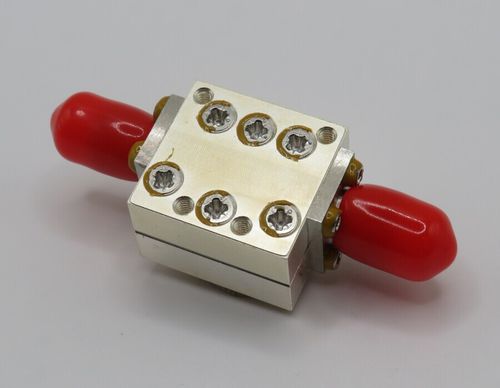

High-pass electronic filter HPF-SS-3300-60-4000-18000-SF-SF

powerDCsignal

This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1.5 dB over its frequency range (4000 MHz to 18000 MHz). This product offers a high rejection of 60 dB from DC to 3300 MHz. Thanks to an high thermal performances substrate, its specifications are very consistent over its operating temperature range ( -40°C to +70°C). This Suspended Substrate High Pass Filter (PN 800076) allows you to suppress unwanted signals from DC to 3300 MHz with a strong attenuation of 60 dB min. Thanks to its low insertion losses (1.5 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (4000 to 18000 MHz). Besides a low form factor of 18.8 x 17.5 x 10.2 mm ( 0.74 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +70°C) while complying with all the specifications. This high-pass filter does not contain any REACH SVHC and is ROHS compliant. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty. Please feel free to ask if you need any customisation or answers to your questions about this product.
