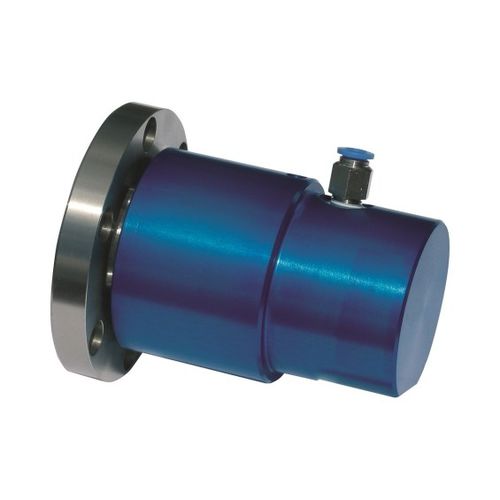

Oil rotary union 2620-300-252
for airfor refrigerant fluids2-passage

oil rotary union

oil rotary union

oil rotary union

oil rotary union

Add to favorites

Compare this product

Characteristics

Medium

for oil, for air, for refrigerant fluids

Number of passages

2-passage

Applications

precision

Other characteristics

radial, with seal, flange, ball bearing

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 7,000 rpm
(43,982.3 rad.min-1)

Pressure

Min.: 0 psi

Max.: 1,015 psi

Nominal size

0.25 in

Description

Two independent passages for applications such as clamping and unclamping Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure Closed seals provide continuous containment of media Dual precision ball bearings for smooth operation Labyrinth system to protect ball bearings Mounting options are compatible with Deublin 2520 or 1579 series unions Media Hydraulic Oil, Air Rotor Connection 107.95 mm Flange, 107.95 mm pilot Air Max. Flow 2100 l/min Air Max. Temperature 71 °C Hydraulic Oil Max. Flow 69 l/min Hydraulic Oil Max. Temperature 71 °C

Catalogs

Rotating Unions for Machine Tools

Rotating Unions for Machine Tools

44 Pages

Main Catalogue DEUBLIN

Main Catalogue DEUBLIN

58 Pages
