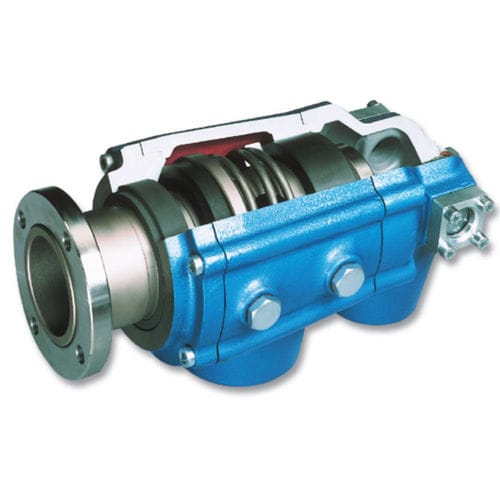

Hot oil rotary union H57-151-250702for steamstainless steelcast iron
Add to favorites
Compare this product
Characteristics
- Medium
- for hot oil, for steam
- Material
- stainless steel, cast iron, carbon fiber
- Other characteristics
- screw-in, flange
- Rotational speed
Max.: 350 rpm
(2,199.11 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Nominal size
1.5 in
Description
Monoflow and duoflow design
Self-supported rotating union
Convex seal ring better suited to handle mechanical and thermal shock
Two widely-spaced graphite bearings
End cap available with optional sight glass for visual inspection of condensate removal
Seal wear indicator allows preventive maintenance
Flanged or threaded rotor available
Cast iron housing
Stainless steel rotor
For steam and hot oil applications in paper, plastic and textile industries and open gear paper machines
Media
Steam, Hot Oil
Rotor Connection
139.7 mm Flange, 65.6 mm pilot
Hot Oil Max. Temperature
232 °C
Steam Max. Temperature
185 °C
Catalogs
No catalogs are available for this product.
See all of DEUBLIN COMPANY‘s catalogs
