Air rotary union 355-021-019
for vacuumhydraulicaluminum

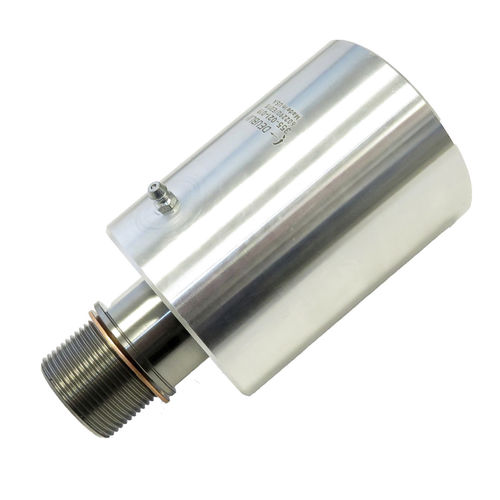

Air rotary union - 355-021-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum

Air rotary union - 355-021-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum

Air rotary union - 355-021-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum - image - 2

Air rotary union - 355-021-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum - image - 3

Air rotary union - 355-021-019 - DEUBLIN COMPANY - for vacuum / hydraulic / aluminum - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for air, for vacuum

Applications

hydraulic

Material

aluminum, stainless steel, carbon steel

Other characteristics

radial, with seal, screw-in

Rotational speed

Max.: 3,000 rpm
(18,849.56 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

150 psi, 1,000 psi

Nominal size

1 in

Description

Monoflow design Self-supported rotating union Radial housing connection Balanced mechanical seals Seal combinations: Carbon Graphite/Hardened Tool Steel or Carbon Graphite/Silicon Carbide Felt oiler in seal cavity for air service Oiler for relubrication (3 to 5 drops/month) Low torque design Weight-optimized design Aluminum housing; stainless steel or carbon steel rotor, depending on model Ball bearings lubricated for life Media Hydraulic Oil, Vacuum, Air Rotor Connection 1-1/2"-12 UNF RH Air Max. Temperature 121 °C Vacuum Max. Pressure -0.95 bar Vacuum Max. Temperature 121 °C Hydraulic Oil Max. Temperature 121 °C
