Oil rotary union 2117-001-105
for airfor vacuum2-passage

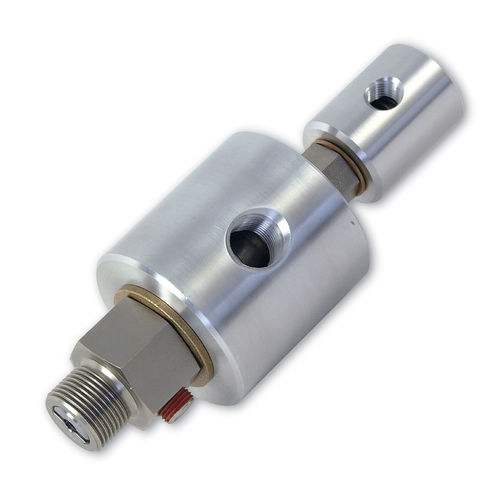

Oil rotary union - 2117-001-105 - DEUBLIN COMPANY - for air / for vacuum / 2-passage

Oil rotary union - 2117-001-105 - DEUBLIN COMPANY - for air / for vacuum / 2-passage

Oil rotary union - 2117-001-105 - DEUBLIN COMPANY - for air / for vacuum / 2-passage - image - 2

Oil rotary union - 2117-001-105 - DEUBLIN COMPANY - for air / for vacuum / 2-passage - image - 3

Oil rotary union - 2117-001-105 - DEUBLIN COMPANY - for air / for vacuum / 2-passage - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for oil, for air, for vacuum

Number of passages

2-passage

Applications

hydraulic

Material

aluminum, steel

Other characteristics

radial, screw-in, dual-flow, low-speed

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 250 rpm
(1,570.8 rad.min-1)

Pressure

150 psi, 3,000 psi

Nominal size

0.25 in, 0.5 in

Description

Tandem dual-passage design for low-speed air, hydraulic, and brake fluid applications Self-supported rotating union No interpassage leakage Aluminum housing and nickel-plated steel rotor Special bearing Media Vacuum, Hydraulic Oil, Air Rotor Connection G 3/4"-14 RH Air Flow 150 CFM Air Temperature 250 °F Hydraulic Oil Temperature 250 °F Vacuum Pressure -13.75 psi Vacuum Temperature 250 °F
