Steam rotary union C15D-004-02-3A
2-passagestainless steelradial

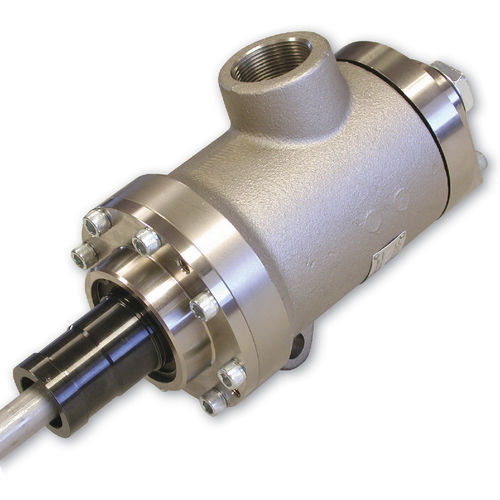

Steam rotary union - C15D-004-02-3A - DEUBLIN COMPANY - 2-passage / stainless steel / radial

Steam rotary union - C15D-004-02-3A - DEUBLIN COMPANY - 2-passage / stainless steel / radial

Steam rotary union - C15D-004-02-3A - DEUBLIN COMPANY - 2-passage / stainless steel / radial - image - 2

Steam rotary union - C15D-004-02-3A - DEUBLIN COMPANY - 2-passage / stainless steel / radial - image - 3

Steam rotary union - C15D-004-02-3A - DEUBLIN COMPANY - 2-passage / stainless steel / radial - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for steam

Number of passages

2-passage

Material

stainless steel

Other characteristics

radial, with seal, screw-in, flange

Rotational speed

Max.: 400 rpm
(2,513.27 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

250 psi

Nominal size

1.5 in

Description

Monoflow and duoflow design Self-supported rotating union Seals and bearings made of special Carbon Graphite Convex seal ring better suited to handle mechanical and thermal shock External mechanism to adjust siphon pipe through end cap Nickel-plated front and rear end cap Nickel-plated ductile iron housing Stainless steel spring Heavy duty steel rotor design Dual bearings for extended service life Media Steam Rotor Connection Quick Connect, 45.18 mm pilot Steam Max. Temperature 232 °C
