Oil rotary union 1579-000
2-passagehydraulicaluminum

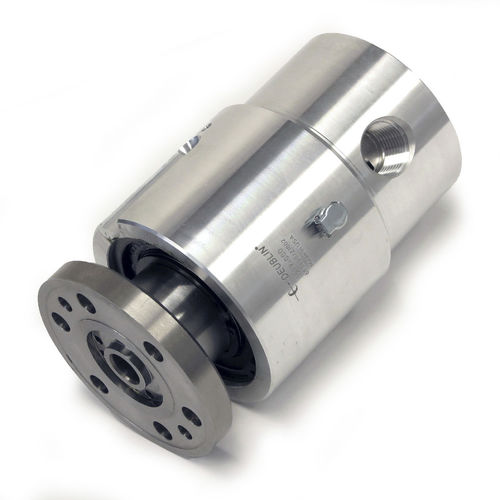

Oil rotary union - 1579-000 - DEUBLIN COMPANY - 2-passage / hydraulic / aluminum

Oil rotary union - 1579-000 - DEUBLIN COMPANY - 2-passage / hydraulic / aluminum

Oil rotary union - 1579-000 - DEUBLIN COMPANY - 2-passage / hydraulic / aluminum - image - 2

Oil rotary union - 1579-000 - DEUBLIN COMPANY - 2-passage / hydraulic / aluminum - image - 3

Oil rotary union - 1579-000 - DEUBLIN COMPANY - 2-passage / hydraulic / aluminum - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for oil

Number of passages

2-passage

Applications

hydraulic

Material

aluminum, cast iron

Other characteristics

radial, with seal, dual-flow, flange

Rotational speed

Max.: 1,500 rpm
(9,424.78 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

1,000 psi

Nominal size

0.5 in

Description

"Deuplex" duoflow design for hydraulic oil Self-supported rotating union Flanged rotor Balanced mechanical seals Seal combinations: Carbon Graphite/Ceramic standard, Tungsten Carbide/Ceramic for extended life service (E.L.S.) Full-media flow Aluminum housing and cast iron rotor Oiler for relubrication (3 to 5 drops/month) Media Hydraulic Oil Rotor Connection 81 mm Flange, 81 mm pilot Hydraulic Oil Max. Temperature 121 °C

Catalogs

Main Catalogue DEUBLIN

Main Catalogue DEUBLIN

58 Pages
