Air rotary union 2620-200-252
for refrigerant fluids2-passageprecision

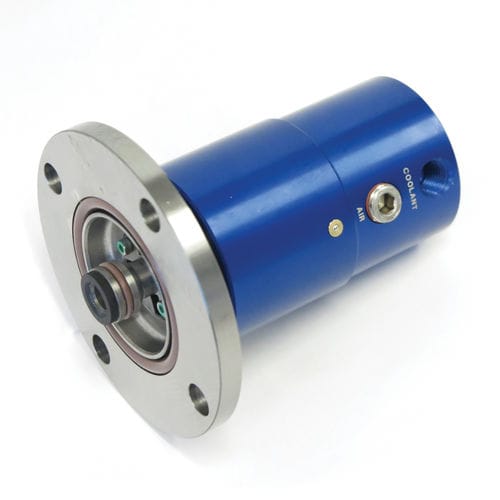

Air rotary union - 2620-200-252 - DEUBLIN COMPANY - for refrigerant fluids / 2-passage / precision

Air rotary union - 2620-200-252 - DEUBLIN COMPANY - for refrigerant fluids / 2-passage / precision

Air rotary union - 2620-200-252 - DEUBLIN COMPANY - for refrigerant fluids / 2-passage / precision - image - 2

Air rotary union - 2620-200-252 - DEUBLIN COMPANY - for refrigerant fluids / 2-passage / precision - image - 3

Air rotary union - 2620-200-252 - DEUBLIN COMPANY - for refrigerant fluids / 2-passage / precision - image - 4

Add to favorites

Compare this product

Characteristics

Medium

for air, for refrigerant fluids

Number of passages

2-passage

Applications

precision

Other characteristics

radial, flange, ball bearing

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 7,000 rpm
(43,982.3 rad.min-1)

Pressure

Min.: 0 psi

Max.: 1,015 psi
(1,015 psi)

Nominal size

0.25 in

Description

Two independent passages for applications such as clamping and unclamping Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure Closed seals provide continuous containment of media Dual precision ball bearings for smooth operation Labyrinth system to protect ball bearings Mounting options are compatible with Deublin 2520 or 1579 series unions Media Coolant, Air Rotor Connection 107.95 mm Flange, 107.95 mm pilot Air Max. Flow 2100 l/min Air Max. Temperature 71 °C Coolant Max. Flow 69 l/min Coolant Max. Temperature 71 °C
