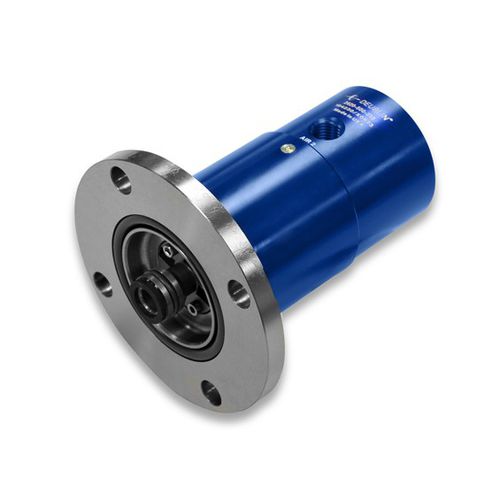

Air rotary union 2620-600-252
2-passageprecisionball bearing

Air rotary union - 2620-600-252 - DEUBLIN COMPANY - 2-passage / precision / ball bearing

Air rotary union - 2620-600-252 - DEUBLIN COMPANY - 2-passage / precision / ball bearing

Air rotary union - 2620-600-252 - DEUBLIN COMPANY - 2-passage / precision / ball bearing - image - 2

Air rotary union - 2620-600-252 - DEUBLIN COMPANY - 2-passage / precision / ball bearing - image - 3

Add to favorites

Compare this product

Characteristics

Medium

for air

Number of passages

2-passage

Applications

precision

Other characteristics

radial, with seal, flange, ball bearing

Rotational speed

Max.: 7,000 rpm
(43,982.3 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Pressure

Max.: 2,030 psi

Min.: 0 psi

Nominal size

0.25 in

Description

Two independent passages for applications such as clamping and unclamping Balanced mechanical seals for each passage provide long life and reduced torque even at maximum pressure Closed seals provide continuous containment of media Dual precision ball bearings for smooth operation Labyrinth system to protect ball bearings Mounting options are compatible with Deublin 2520 or 1579 series unions Media Hydraulic Oil, Coolant Rotor Connection 107.95 mm Flange, 107.95 mm pilot Coolant Max. Flow 69 l/min Coolant Max. Temperature 71 °C Hydraulic Oil Max. Flow 69 l/min Hydraulic Oil Max. Temperature 71 °C
